Refractory Ceramic Fibre

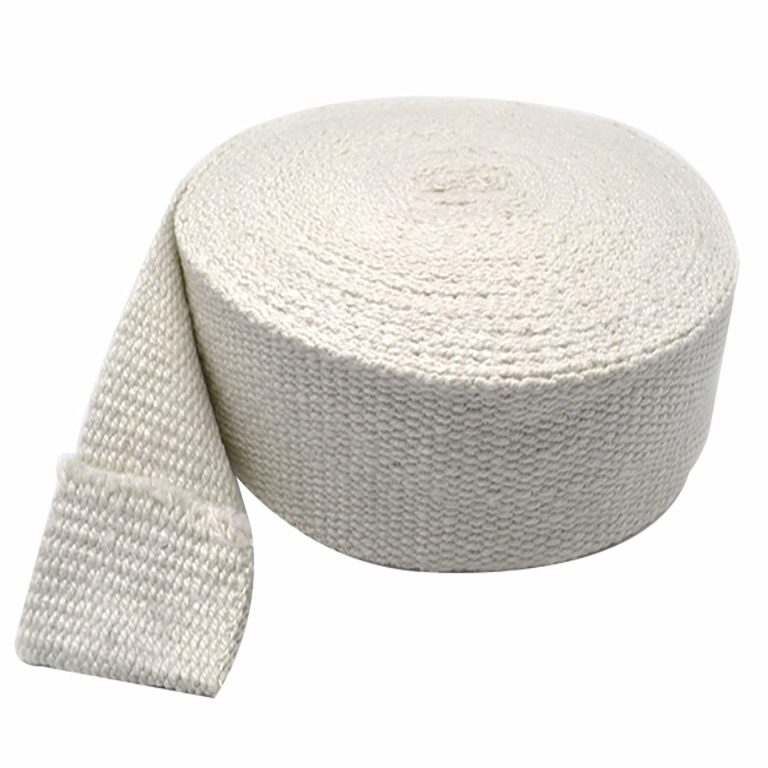

Ceramic Fiber Tape

Applications:

  • Curtains of industrial furnaces and special operative protective cloth.
  • Cable or fuel pipeline protection.
  • Door sealing flange connection.
  • Flexible expansion joint connection

    Introduction

    Ceramic fiber tapes are made of high quality ceramic fiber yarns reinforced by both glass and stainless steel wires. It can be used in various thermal equipment and heat conduction systems as fire-resistant, fire-resistant, heat-insulating and friction materials.

    The products are not only have the performance of thermal insulation, but also have the tenacity of common textile.

    Specifications and classification

    (Item)(Steel Wire Reinforced and Glass Fiber Reinforced)
    (Ceramic Fiber Cloth)(Width):1000/1500(mm);(Thickness):1.5/2/3/4/5/6(mm)
    (Ceramic Fiber Tape)(Width):10-150(mm);(Thickness):2/3/4/5/6(mm)
    (Ceramic Fiber Twist Rope)(Diameter):5/6/8/10/12/14/16/18/20/25/30/35/40/50(mm)
    (Ceramic Fiber Round Rope)(Diameter):5/6/8/10/12/14/16/18/20/25/30/35/40/50(mm)
    (Ceramic Fiber Square Rope)Size):6*6,8*8,10*10,12*12,15*15,16*16,18*18,20*20,25*25,30*30,35*35,40*40,45*45,50*50,60*60(mm)
    (Aluminum foil fiber cloth)(Width):1000/1500(mm);(Thickness):1.5/2/3/4/5/6(mm)
    (Other specifications according to customers inquires)。

    Technical Index

    (Item)(Ceramic Fiber Reinforced By Fiberglass)(Ceramic Fiber Reinforced By steel Wire)
    (℃)Max·Service Temperature650℃1000℃
    (%)Organic Content≤15≤15
    (Density)500-600kg/m3500-600kg/m3
    (Package)Cartons or bags)(Cartons or bags)

    Characteristics

    1. Low thermal conductivity, excellent thermal insulation performance.
    2. Excellent tensile properties.
    3. Resistance to the acid, oil and other erosions.
    4. Excellent mechanical strength and resistance to heat-shock.

    Applications

    scene 01

    Heat pipes, insulated containers.

    scene 02

    Curtains of industrial furnaces and special operative protective cloth.

    scene 03

    Cable or fuel pipeline protection.

    scene 04

    Door sealing flange connection.
