Ceramic Fiber Module

Applications:

Ceramic Industry:Tunnel kiln, shuttle kiln, roller kiln.
Petrochemical Industry: Atmospheric furnace, transforming furnace, coking furnace, cracking furnace, flue etc.
Iron and Steel Industry: Ladle cover, annealing furnace,rotary furnace,bell furnace,walking beam furnace，hot air and flue pipes etc.
Green energy industry：Waste incinerators, RTO exhaust treatment furnace, SCR environmental catalytic stove etc.

Introduction

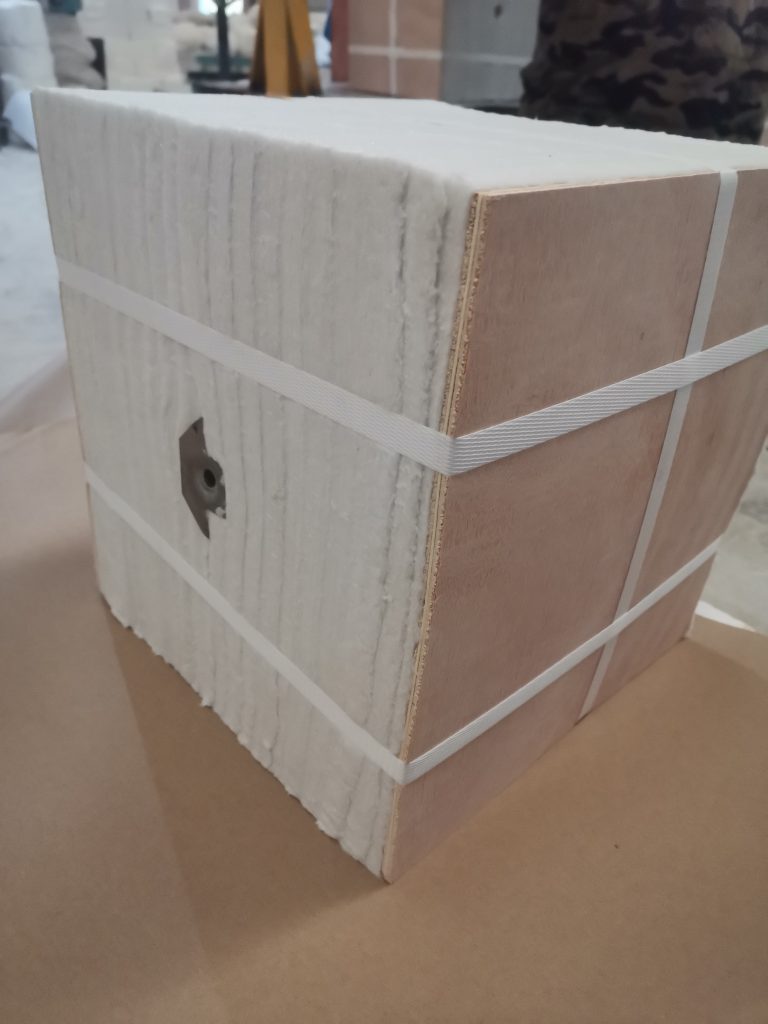

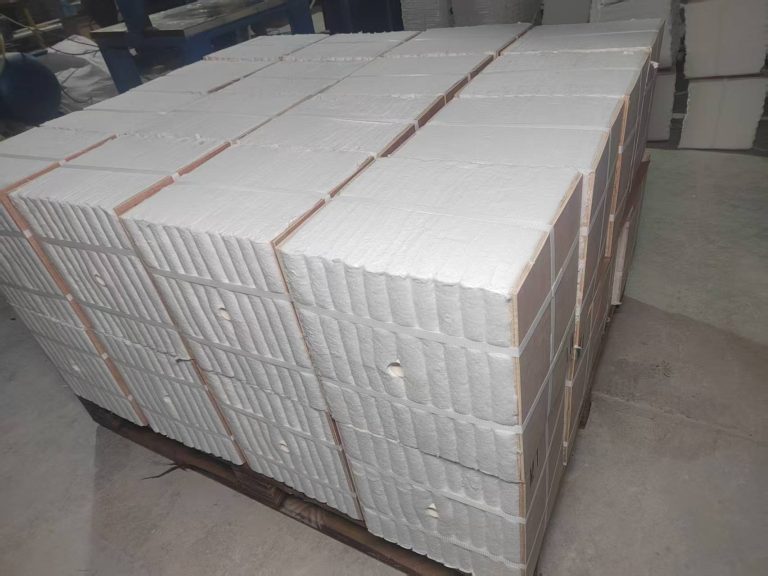

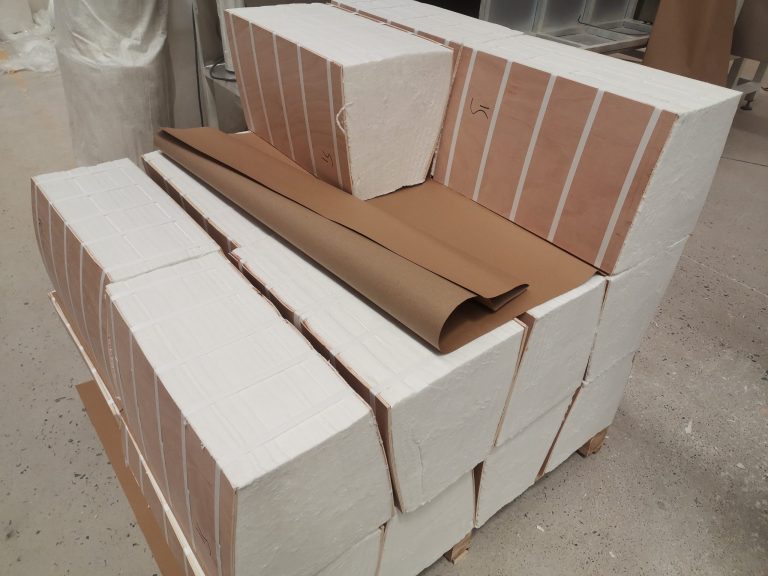

Hengrui ceramic fiber module is made of Hengrui ceramic fiber blanket which is folded or cut by experienced professional technicians.We use special equipment for producing module to confirm the precise dimensions and keep smooth surface of module, and then be applied to the lining of various thermal equipment. The products have some characteristics such as reliable quality, quick installation, superior insulation properties.

Hengrui ceramic fiber module use the enhanced H-type anchors, which have greater strength, closer to the cold face. It can make sure the strength in high temperature. The fixed link was welding together with the high quality heat-resistance steel and stamping butterfly plate. The two round fixed link were embedded in the module system, enlarged the bearing area and ensured the firm of anchor system.

Technical Index

Ceramic Fiber Modules		HR1050C-RM	HR1260ST-RM	HR1260HP-RM	HR1350HA-RM	HR1400LZ-RM	HR1430HZ-RM	HR1500Cr-RM	HR1600PCF-RM
Max·Service Temperature		1050	1260	1260	1350	1400	1430	1500	1600
220kg/m3/at()℃/24hLinear Shrinkage Rate		≤3.0(950℃)	≤3.0(1000℃)	≤3.0(1050℃)	≤3.0(1200℃)	≤3.0(1250℃)	≤3.0(1300℃)	≤3.0(1350℃)	≤1.5(1450℃)
（KG/M3）Density		172/192/210/220/230/240
(W/m.k)Thermal Conductivity Rate	400℃	0.14	0.09	-	-	-	-	-	-
	600℃	0.20	0.16	0.16	0.16	0.16	0.15	0.15	-
	800℃	0.25	0.23	0.23	0.23	0.23	0.23	0.23	0.27
	1000℃	-	-	0.36	0.36	0.36	0.35	0.35	0.38
Chemical Composition（After burning）	Al2O3	≥38	≥42	≥45	≥52	≥37	≥37	≥37	≥72
	Al2O3+SiO2	≥97	≥97	≥98	≥98	≥92	≥83	≥93	≥99
	ZrO2	-	-	-	-	5-7	15-17	-	-
	Cr2O3	-	-	-	-	-	-	3-5	-
	Others	≤3.0	≤3.0	≤2.0	≤2.0	≤2.0	≤2.0	≤2.0	≤1.0
（Standard Size）		600/300300300/250/200/150mm
（Package）		（Non-fumigation pallet Pallet）
Recommended using temperature: In oxidizing or neutral atmosphere, 100 ~250℃ lower than the maximum service temperature, In reductive atmosphere, 200 ~350℃ lower than the maximum service temperature.

ps:value not guarantee value,fluctuate within the standard value, for more details about our products properties or technical support, please contact Hengrui Technical Department ).

Installation Diagram

Characteristics

Low bulk density,low thermal conductivity.
Resistance to heat-shock, ability to resist the scouring of airflow.
Excellent mechanical strength ,built-in anchor, safety performance.
Easy to install. after installing the lining form a seamless space, good insulation effect.
