Ceramic Fiber Inorganic Board

Introduction

The ceramic fiber inorganic board, that is, the fiber board hardened by high-temperature calcination, can directly block the fire, and can prevent the board from dropping slag, corrosion and decay. The hardened fiber inorganic board will not smoke and blacken during use. There is also no pungent smell.and the board includes 6 levels: 1050℃, 1260℃, 1350℃, 1430℃, 1600℃, 1700℃and 1800℃. Ceramic fiber inorganic board can resist the scouring of airflow for its high strength, so it can be the material of internal linings.

The usability of hydrophobic ceramic fiber inorganic board is really good under the condition of high moisture. Ceramic fiber inorganic board has excellent hydrophobicity after processing by specific techniques.

Hengrui inorganic ceramic fiber board is made by using Hengrui ceramic fiber bulk and inorganic binding agent through vacuum forming. When using the board under the circumstance of high temperature, the pollution gas will not be generated.

Technical Index

Ceramic fiber inorganic board		HR1050 C-RBD	HR1260 ST-RBD	HR1260 HP-RBD	HR1350 HA-RBD	HR1430 Zr-RBD	HR1600 PCF-RBD	HR1700 PCF-RBD	HR1800 PCF-RBD
Max·Service Temperature		1050	1260	1260	1350	1430	1600	1700	1800
Density		220/250/280/300/320/350/380/400					400/450/500/550
Linear shrinkage（After burning）		≤3.0 950℃	≤3.0 1050℃	≤3.0 1100℃	≤3.0 1200℃	≤3.0 1300℃	≤1.0 1450℃	≤1.0 1550℃	≤1.0 1650℃
Modulus of rupture（MPa）		≥0.3	≥0.4	≥0.4	≥0.4	≥0.4	≥0.6	≥0.6	≥0.6
Loss on ignition（%）		≤8.0					≤4.0
Thermal conductivity      rate (W/m.k)	400℃	0.08	-	-	-	-	-	-	-
	600℃	0.12	0.12	0.12	0.12	-	-	-	-
	800℃	0.16	0.16	0.16	0.16	0.16	0.17	0.17	0.17
	1000℃	-	0.23	0.23	0.23	0.23	0.23	0.23	0.23
Chemical Composition（After burning）（%）	Al2O3	≥37	≥41	≥43	≥45	≥37	≥65	≥70	≥72
	Al2O3+SiO2	≥97	≥97	≥98	≥98	≥84	≥99	≥99	≥99
	ZrO2	-	-	-	-	≥11	-	-
	Others	≤3.0	≤3.0	≤2.0	≤2.0	≤2.0	≤1.0	≤1.0	≤1.0
Standard Size （L*W*T）mm		1200/600*1000*(6-105)，1200*500*(6-105)					1000/900*600*20-150
Package		Paper Cartons or Non-fumigation Pallets					Non-fumigation Wooden Box
Other sizes of products and packages are available as required. Recommended using temperature: In oxidizing or neutral atmosphere, 100 ~250℃ lower than the maximum service temperature, In reductive atmosphere, 200 ~350℃ lower than the maximum service temperature.

Characteristics

1. Precise size and smooth surface.
2. Easy to cut and install, and convenient to construct.
3. Low impurity content; identical bulk density and thickness.
4. Excellent mechanical and structural strength.
5. Low thermal conductivity and low shrinkage.
6. Ability to resist the scouring of airflow.

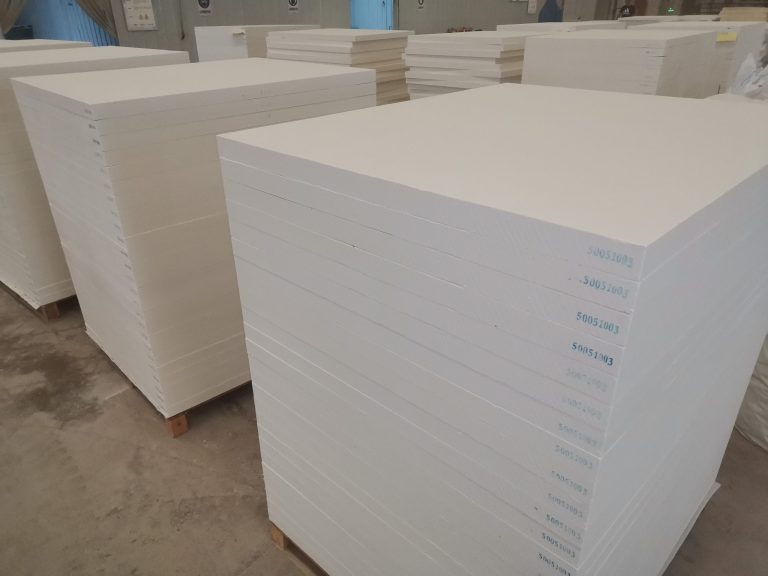

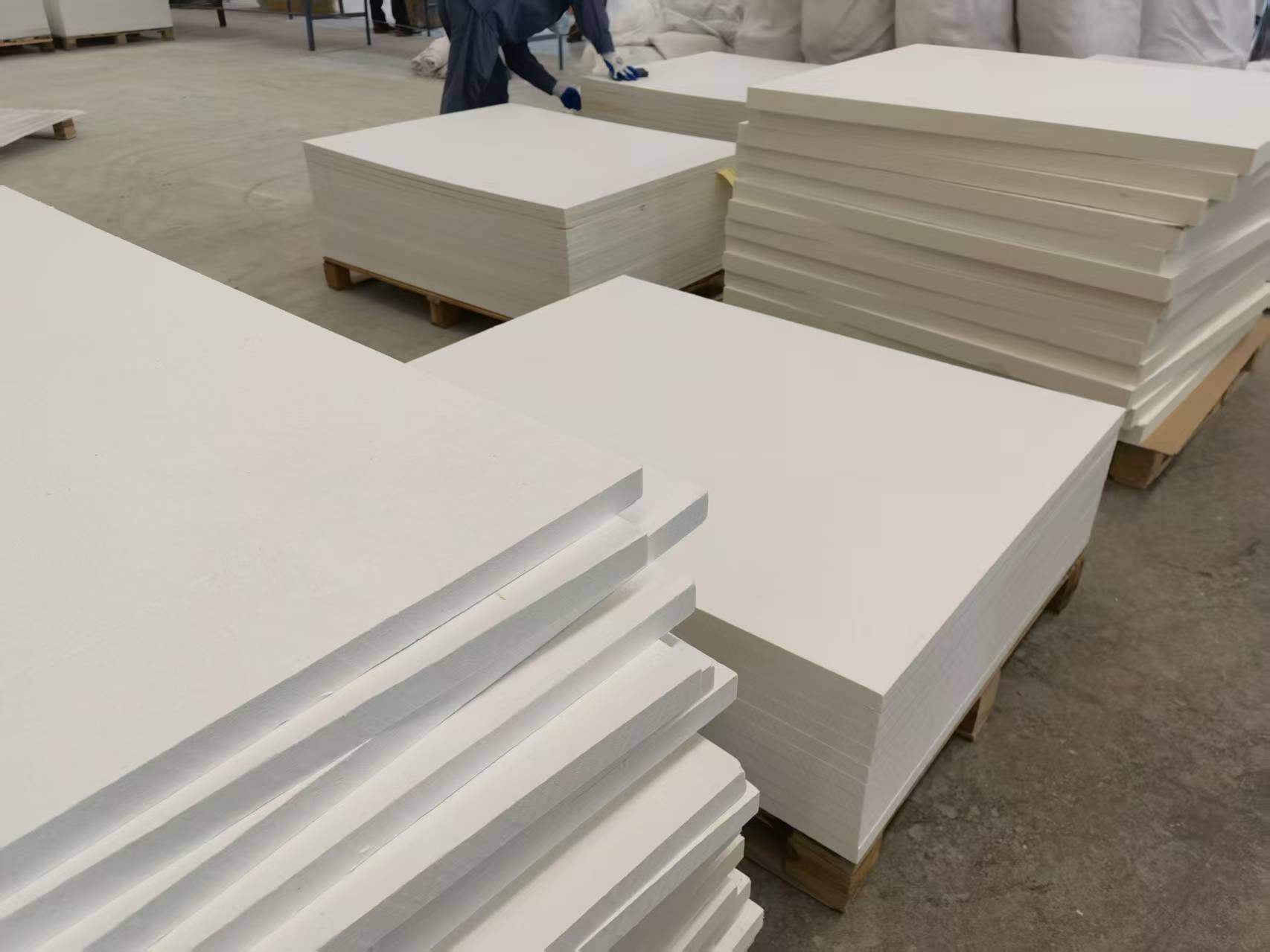

Workshop scene

Applications
