Ceramic Fiber Hydrophobic Board

Introduction

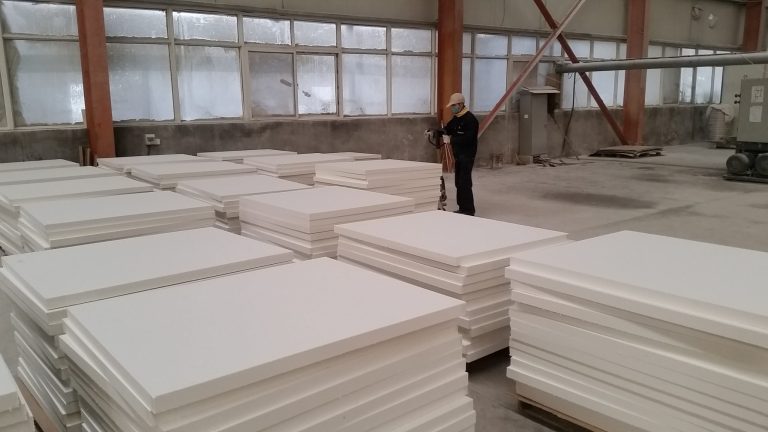

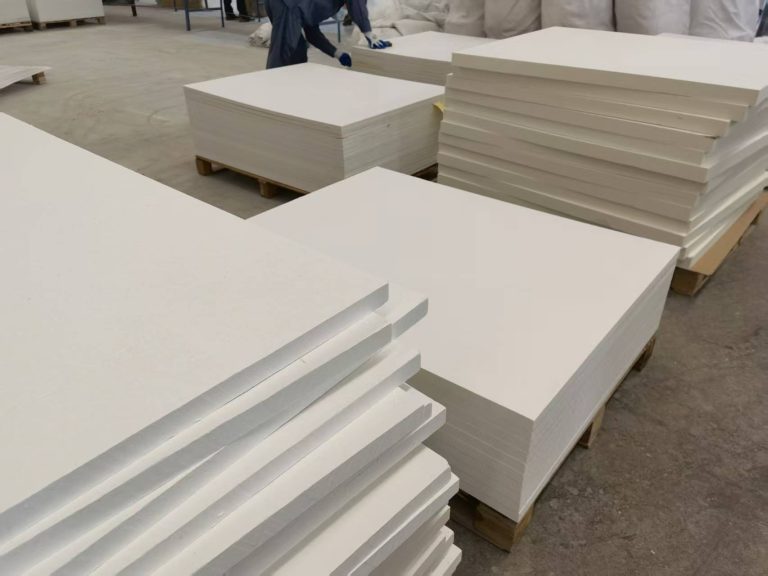

The ceramic fiber hydrophobic board is made of ceramic fiber cotton, inorganic filler and a small amount of organic binder and water repellent as raw materials. It is a plate-shaped fiber product that is continuously processed by the fourdrinier printing process. The ceramic fiber hydrophobic board has good water repellency. The hydrophobic rate can reach more than 98%. At the same time, the ceramic fiber hydrophobic board has low thermal conductivity, non-combustibility, moisture resistance, and good sound absorption, and the board includes 6 levels: 1050℃, 1260℃, 1350℃, 1430℃, 1600℃, 1700℃ and 1800℃. Hengrui ceramic fiber hydrophobic board can resist the scouring of airflow for its high strength, so it can be the material of internal linings.

The usability of hydrophobic ceramic fiber hydrophobic board is really good under the condition of high moisture. Hengrui ceramic fiber board has excellent hydrophobicity after processing by specific techniques.

Technical Index

Ceramic fiber hydrophobic board		HR1050 C-RBD	HR1260 ST-RBD	HR1260 HP-RBD	HR1350 HA-RBD	HR1430 Zr-RBD	HR1600 PCF-RBD	HR1700 PCF-RBD	HR1800 PCF-RBD
Max·Service Temperature		1050	1260	1260	1350	1430	1600	1700	1800
Density		220/250/280/300/320/350/380/400					400/450/500/550
Linear shrinkage（After burning）		≤3.0 950℃	≤3.0 1050℃	≤3.0 1100℃	≤3.0 1200℃	≤3.0 1300℃	≤1.0 1450℃	≤1.0 1550℃	≤1.0 1650℃
Modulus of rupture（MPa）		≥0.3	≥0.4	≥0.4	≥0.4	≥0.4	≥0.6	≥0.6	≥0.6
Loss on ignition（%）		≤8.0					≤4.0
Thermal conductivity      rate (W/m.k)	400℃	0.08	-	-	-	-	-	-	-
	600℃	0.12	0.12	0.12	0.12	-	-	-	-
	800℃	0.16	0.16	0.16	0.16	0.16	0.17	0.17	0.17
	1000℃	-	0.23	0.23	0.23	0.23	0.23	0.23	0.23
Chemical Composition（After burning）（%）	Al2O3	≥37	≥41	≥43	≥45	≥37	≥65	≥70	≥72
	Al2O3+SiO2	≥97	≥97	≥98	≥98	≥84	≥99	≥99	≥99
	ZrO2	-	-	-	-	≥11	-	-
	Others	≤3.0	≤3.0	≤2.0	≤2.0	≤2.0	≤1.0	≤1.0	≤1.0
Standard Size （L*W*T）mm		1200/600*1000*(6-105)，1200*500*(6-105)					1000/900*600*20-150
Package		Cartons or Pallets					Wooden
Other sizes of products and packages are available as required. Recommended using temperature: In oxidizing or neutral atmosphere, 100 ~250℃ lower than the maximum service temperature, In reductive atmosphere, 200 ~350℃ lower than the maximum service temperature.

Characteristics

1. Precise size and smooth surface.
2. Easy to cut and install, and convenient to construct.
3. Low impurity content; identical bulk density and thickness.
4. Excellent mechanical and structural strength.
5. Low thermal conductivity and low shrinkage.
6. Ability to resist the scouring of airflow.

Applications
