Refractory Ceramic Fibre

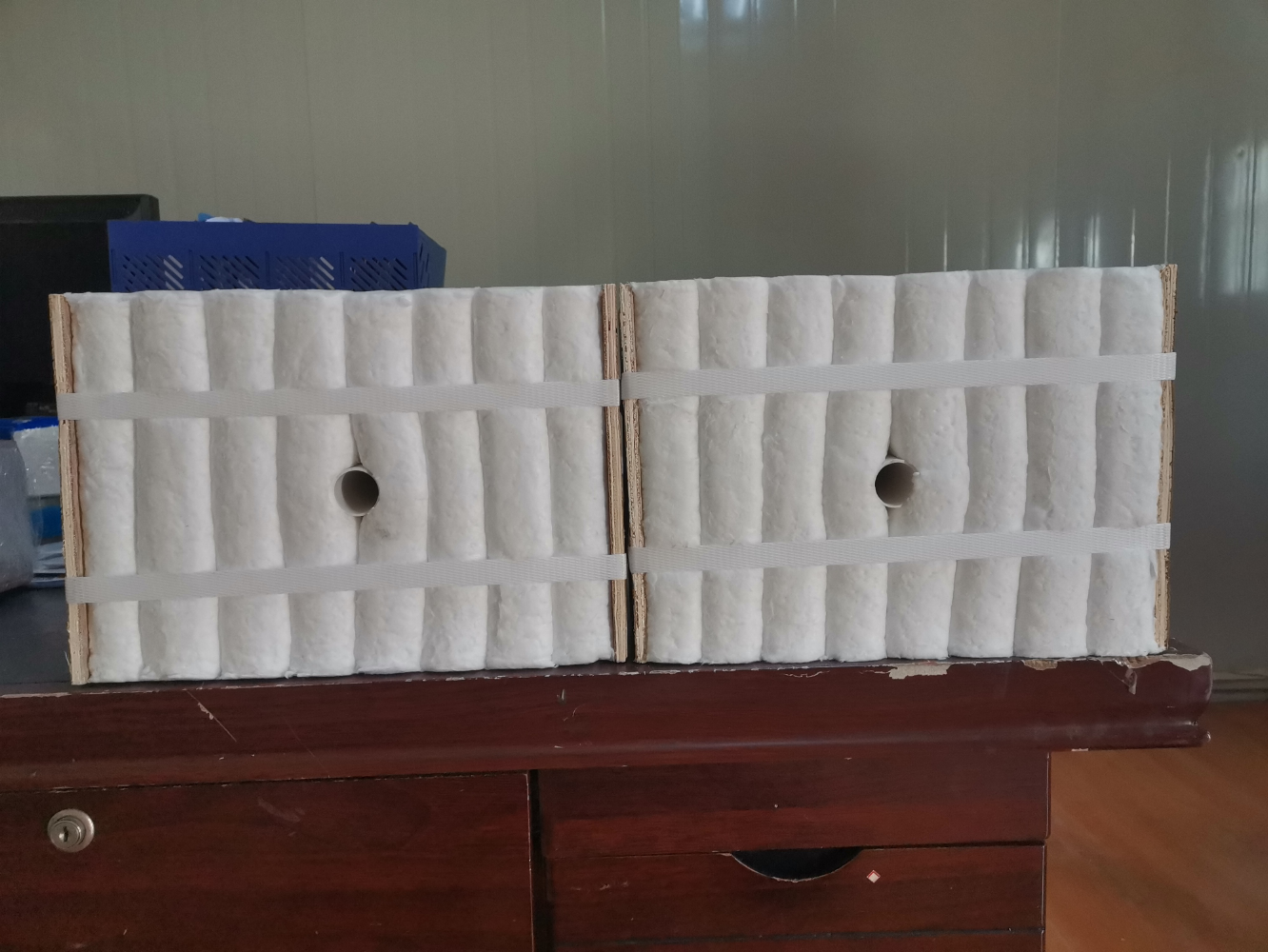

The ceramic fiber folding module has the excellent characteristics of ceramic fiber. The fiber module is always in the expansion state to compensate for thermal shrinkage, so that the overall sealing of the furnace body is high; it has the ability to resist thermal shock; the lining does not need to be dried and maintained, and can be put into operation immediately after installation. Use; the anchoring system is kept away from the hot surface of the furnace, so that the metal anchors are at a relatively low safe temperature.

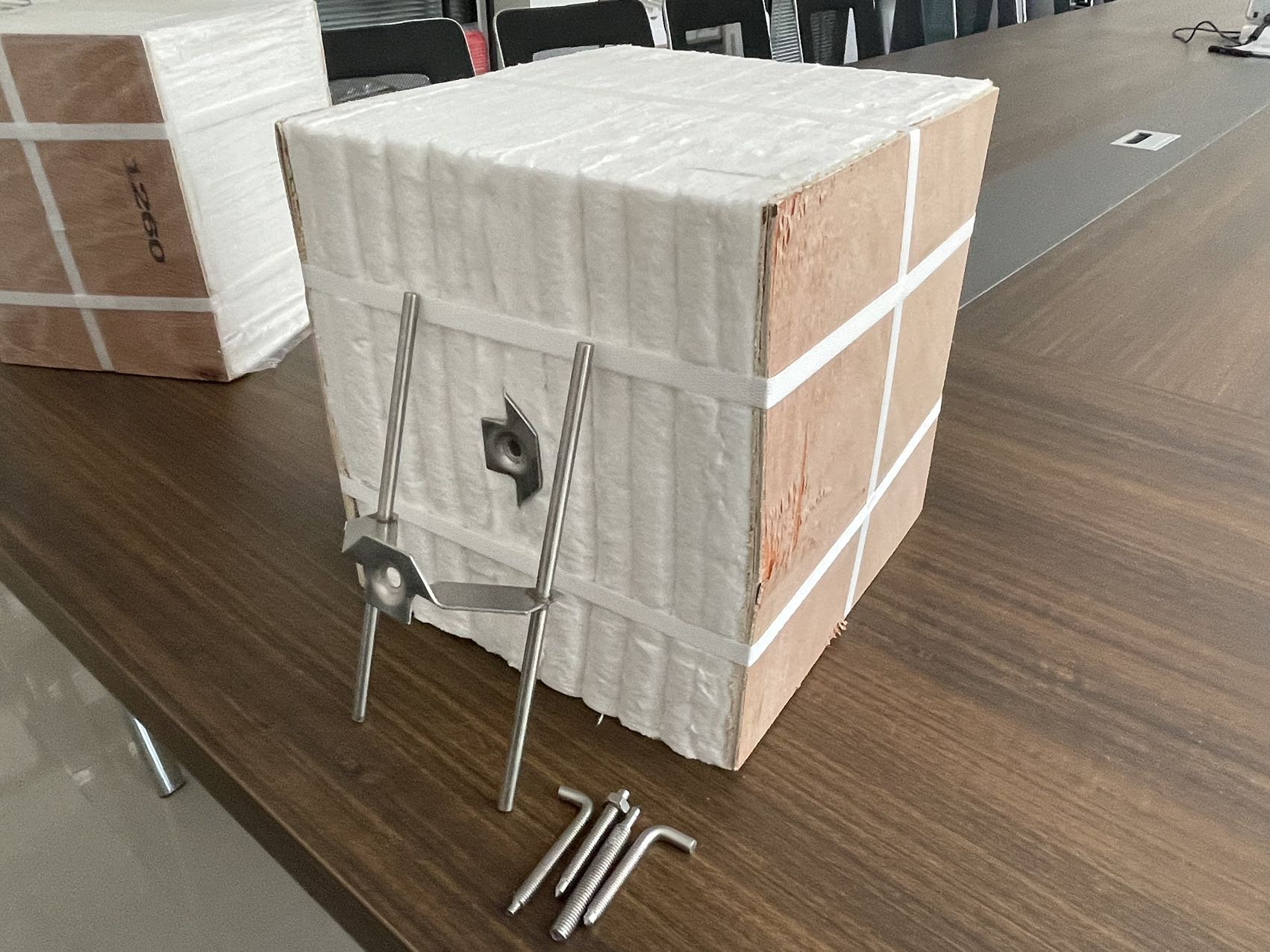

Ceramic fiber folding module use the enhanced H-type anchors, which have greater strength, closer to the cold face. It can make sure the strength in high temperature. The fixed link was welding together with the high quality heat-resistance steel and stamping butterfly plate. The two round fixed link were embedded in the module system, enlarged the bearing area and ensured the firm of anchor system.
Ceramic Fiber Folding Modules | HR1050C-RM | HR1260ST-RM | HR1260HP-RM | HR1350HA-RM | HR1400LZ-RM | HR1430HZ-RM | HR1500Cr-RM | HR1600PCF-RM | |
Max·Service Temperature | 1050 | 1260 | 1260 | 1350 | 1400 | 1430 | 1500 | 1600 | |
220kg/m3/at()℃/24hLinear Shrinkage Rate | ≤3.0(950℃) | ≤3.0(1000℃) | ≤3.0(1050℃) | ≤3.0(1200℃) | ≤3.0(1250℃) | ≤3.0(1300℃) | ≤3.0(1350℃) | ≤1.5(1450℃) | |
(KG/M3)Density | 172/192/210/220/230/240 | ||||||||
(W/m.k)Thermal Conductivity Rate | 400℃ | 0.14 | 0.09 | - | - | - | - | - | - |
600℃ | 0.20 | 0.16 | 0.16 | 0.16 | 0.16 | 0.15 | 0.15 | - | |
800℃ | 0.25 | 0.23 | 0.23 | 0.23 | 0.23 | 0.23 | 0.23 | 0.27 | |
1000℃ | - | - | 0.36 | 0.36 | 0.36 | 0.35 | 0.35 | 0.38 | |
Chemical Composition(After burning) | Al2O3 | ≥38 | ≥42 | ≥45 | ≥52 | ≥37 | ≥37 | ≥37 | ≥72 |
Al2O3+SiO2 | ≥97 | ≥97 | ≥98 | ≥98 | ≥92 | ≥83 | ≥93 | ≥99 | |
ZrO2 | - | - | - | - | 5-7 | 15-17 | - | - | |
Cr2O3 | - | - | - | - | - | - | 3-5 | - | |
Others | ≤3.0 | ≤3.0 | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 | ≤1.0 | |
(Standard Size) | 600/300*300*300/250/200/150mm | ||||||||

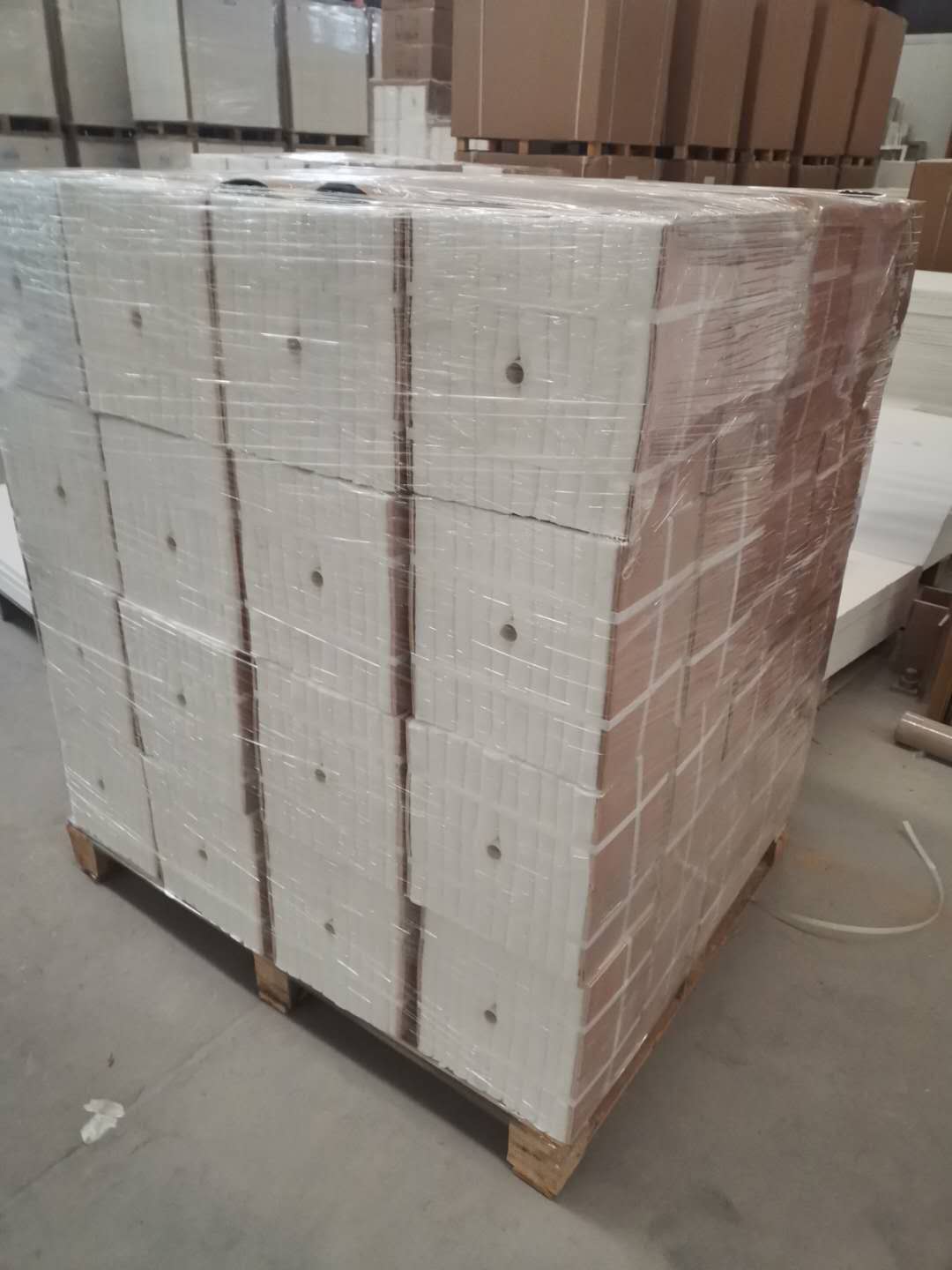

(Package) | (Carton or Pallet) | ||||||||
Recommended using temperature: In oxidizing or neutral atmosphere, 100 ~250℃ lower than the maximum service temperature, In reductive atmosphere, 200 ~350℃ lower than the maximum service temperature. |
Green energy industry:Waste incinerators, RTO exhaust treatment furnace, SCR environmental catalytic stove etc.
Ceramic Industry:Tunnel kiln, shuttle kiln, roller kiln.
Iron and Steel Industry: Ladle cover, annealing furnace,rotary furnace,bell furnace,walking beam furnace,hot air and flue pipes etc.
Petrochemical Industry: Atmospheric furnace, transforming furnace, coking furnace, cracking furnace, flue etc.
